PT Biotech Indo
Gemilang .jpg)

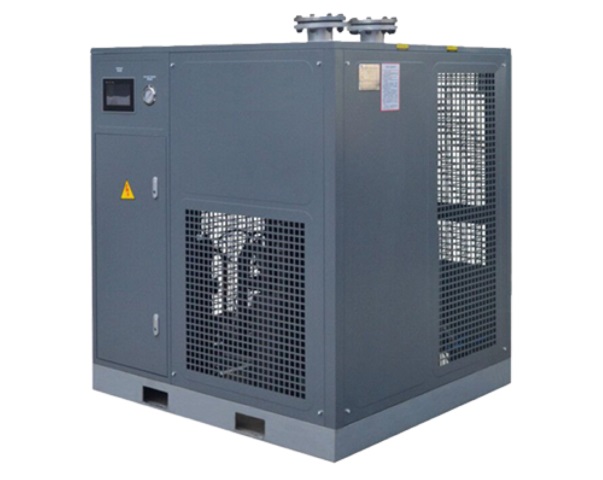

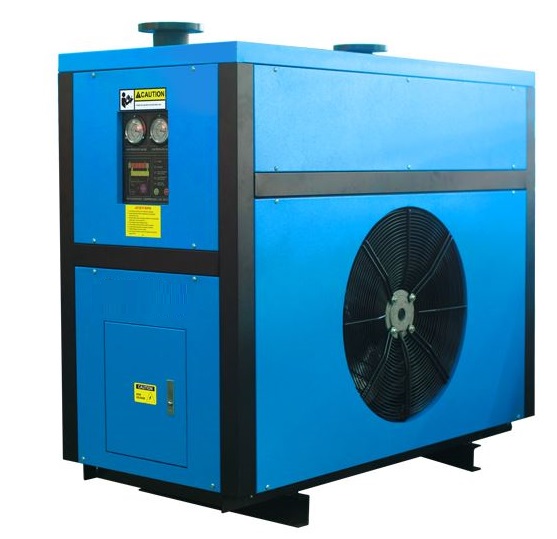

Pengering udara tekan dengan sistem pendingin refrigerant.
- Kapasitas 0,9 - 300 Nm3/min
- Pressure dew point 2-10°C
- Max Inlet temperature 80°C
- Max ambient temperature 45°C
Compressor: World-class refrigerant compressor ( Hitachi, Panasonic, Danfoss )
Freon: Eco friendly refrigerant R407, R410
Heat exchanger: 3 in 1 Plate fin heat exchanger, evaporator, water separator. Option: Shell & tube heat exchanger.
Pre cooler: built in pre cooler for high inlet temperature.
World class valve: Danfors valve, JORC drain, Sporlan hot gas bypass valve
Artikel: Standar kualitas udara tekan
Informasi lebih lanjut:
| Model | Capacity (Nm³/min) | In Out (inch) |
Freon | Normal | High Temperature | ||
| Power (kw) | Power (kw) | ||||||
| Comp | Fan | Comp | Fan | ||||
| RD-0.75* | 0,9 | G¾" | 134a | 0,32 | 0,05 | ||
| RD-1* | 1,2 | G1" | 134a | 0,32 | 0,10 | ||
| RD-2* | 2,5 | G1" | 134a | 0,39 | 0,10 | 0,39 | 0,20 |
| RD-3* | 3,7 | G1" | 410a | 0,77 | 0,12 | 0,77 | 0,25 |
| RD-5* | 5,0 | G1½" | 410a | 0,93 | 0,19 | 0,93 | 0,32 |
| RD-6* | 6,8 | G1½" | 410a | 1,15 | 0,19 | 1,15 | 0,38 |
| RD-8* | 8,5 | G1½" | 410a | 1,75 | 0,27 | 1,75 | 0,46 |
| RD-10* | 10,9 | G2" | 410a | 2,72 | 0,38 | 2,72 | 0,65 |
| RD-13* | 13,5 | G2" | 410a | 2,72 | 0,38 | 2,72 | 0,65 |
| RD-15* | 17,0 | DN65 | 410a | 3,70 | 0,38 | 3,70 | 0,65 |
| RD-20* | 22,0 | DN65 | 407c | 3,83 | 0,46 | 3,83 | 0,92 |
| RD-25* | 26,8 | DN80 | 407c | 5,35 | 0,46 | 5,35 | 0,92 |
| RD-30* | 32,0 | DN80 | 407c | 5,20 | 0,84 | 5,20 | 1,68 |
| RD-40* | 43,5 | DN100 | 407c | 6,85 | 1,26 | 6,85 | 1,68 |
| RD-50* | 53,0 | DN100 | 407c | 8,79 | 1,26 | 8,79 | 2,52 |
| RD-60* | 67,0 | DN125 | 407c | 10,18 | 1,68 | 10,18 | 3,88 |
| RD-80* | 90,0 | DN125 | 407c | 16,58 | 2,20 | 16,58 | 4,40 |
| RD-100* | 110,0 | DN150 | 407c | 21,37 | 3,30 | 21,37 | 6,60 |
ION Air Treatment (2022.2).pdf
